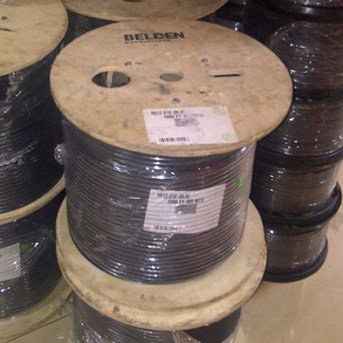

Spesifikasi Kabel RG8 BELDEN 9913
Kabel RG8 BELDEN 9913 Termasuk Dalam Deretan Jenis Kabel Coaxial RG Ter-Favorit. Kabel RG8 BELDEN 9913 Mempunyai Iner Tunggal Impedansi 50 Ohm ( Cocok Untuk Kabel RF ) Repeater, Pemancar TV, Pemancar Radio Amatir, Radio Orari, Dll. Kabel RG8 BELDEN 9913 Dapat Ditemukan Di Perusahaan Kami.
Specification:
• Manufacturer : BELDEN
• Model : 9913
• Product Description : 50 Ohm Coaxial Cable - Low Loss Rg8/ U Cable
• Cable Type : 3/ 8 " Braided
• Connectors : Price Includes Installation Of Connectors.
• Shield % : 100%
• Impedance : 50 Ohms
• Vop. : 84%
• Center Conductor : 0.108 " Solid
• Insulation : Polyethylene
• Other Spec : Black Jacket
• Nom. Core O.D. ( In.) 0.285 "
• Nom. O.D. ( In.) 0.405 "
Losses Shown Are Based On 100 Foot Length
• Loss 50 Mhz : 0.9 Db
• Loss 100 Mhz : 1.3 Db
• Loss 400 Mhz : 2.7 Db
• Loss 900 Mhz : 4.2 Db
• Loss 1000 Mhz : 4.5 Db
• Nom. Capacitance ( Pf/ Ft) : 24.6
• Sold By : Per Foot ( Note - When Ordering) 1 Unit Sold = 1 Foot, 10 Units Sold = 10 Feet, 50 Units Sold = 50 Feet, Etc.
